Product Description

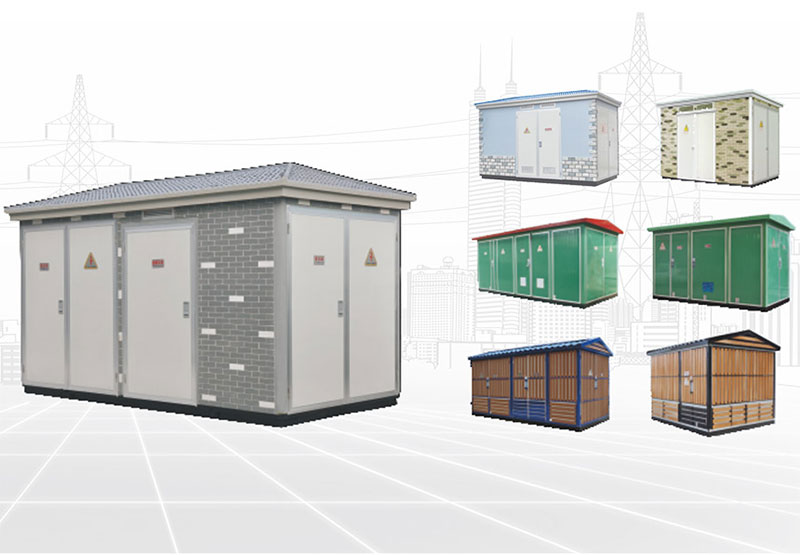

European box-type transformer substation E-house Ybm-12/0.4 prefabricated substation
Product Introduction
The Ybm-12/0.4 prefabricated substation is a type of modular substation, with another name of 'European style modular substation', is a type of compact set of power distribution substation with the components of HV electricity, power transformer and LV electricity, and it is with varied features of high combination, small sizes, removable, safe & reliable operation, easy maintenance and nice shape.
This new electrical power distribution substation can be wide range used in the city public distribution, high building, residential quarter, mining, port, oil site, park, car station, air port, subways and high way.Performance Features
1.lt has good heat insulation and ventilation measures. A double layers structure is adopted in the cabinet, and the heat insulationmaterial is also set in the interlayer, which effecively reduces the temperature rise caused by sunshine.
2.Safe and reliable operation. The high voltage side of the transformer substation selects RMU model XGN15- 12 and SRM-12, could alsoadopt other types of metal clad switchgear, complete Five-Preventions interlock. Each door frame has good waterproof structure.
3.It is convenient to operate and maintain. Each compartment has automatic lighting device, transformer compartment has track andcart, convenient for transformer intallation, maintenance and replacement.
4.The appearance is beautiful and durable. The cabinet shell is made of high performance marine zinc rich epoxy primer and epoxyanticorrosive mortar, which has good anticorrosive property, and the surface color can be configured arbitrarily with the environment.All electrical insallations are all galvanized, and it adopts a special anti blocking and anti rust universal lock.Technical Parameters
Items
Unit
Parameter
High-Voltage Components
Rated Frequency
Hz
50/60
Rated Voltage
kv
12
Withstand Voltage of Working Frequency, to Ground, or Phase to Phase
kv
42
Withstand Voltage of Thunder Impact Ground, to Ground, or Phase to Phase
kv
75
Rated Current
A
630
Rated Instantaneous Withstand Current
kA
20(2S)
Rated Peak Withstand Current
kA
50
Low-Voltage Components
Rated Voltage
V
400
Rated Current of Main Circuit
A
100-4000
Rated Instantaneous Withstand Current
kA
50
Rated Peak Withstand Current
kA
105
Transformer
Rated Capacity
kVA
50-2000
Tap Range
±2×2.5%
or±5%
Linked Groups
D,yn11
Noise Level
dB
≤55
Shell Protection Grades
IP33
Applicable Conditions
· Temperature range: -25 °C to +40 °C.
· Altitude: ≤ 1000 m, and the altitude can be up to 3000 m if special transformer and low voltage components are used.
· Vertical gradient: ≤ 5°.
· Workplaces should be free of violent vibration & shock, conductive dust, explosive danger, erosive metals and electrical apparatus elements.
· Air humidity: ≤ 90% (+25 °C).
· Outdoor wind speed: ≤ 35 m/s.

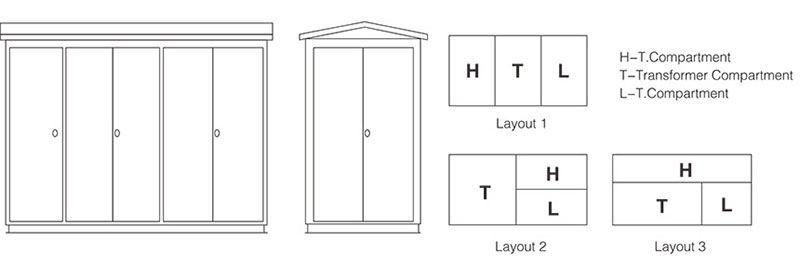

Schematic Diagram of Structure
Installation
The manufacturer can provide the foundation layout for their modular substation. The customer or user can design the foundation by themselves, but the layout need to be provided for manufacturer.The lightning conductors need to pre-lay in side or around of the foundation of the modular substation. The ground connection and lightning protection of the transformer can be jointly used as one grounding system. The grounding cables to the foundation platform should be not less than two lines and the grounding resistance should be guaranteed to be less than or equal to 4 Ohm.(R≤4Ω)
For water proof, the gap between the modular substation and the foundation should be sealed with the cement concrete.
Ordering Instructions
The information need to be provided by the customer to the manufacturer.

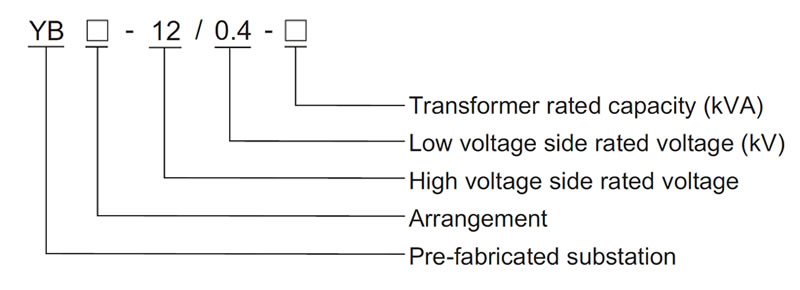

A. Product Model
B. Operation Conditions
C. Transformer Model and Capacity
D. Cable Installation Solution, and Electrical Components' Model and Parameters
E. Shell Color Code
F. If any other requirements, the clients can provide to manufacturer while place the order.Product Description
